New Motorcycles » Big Dog » Mastiff
Model Quick Search

$27,900.00

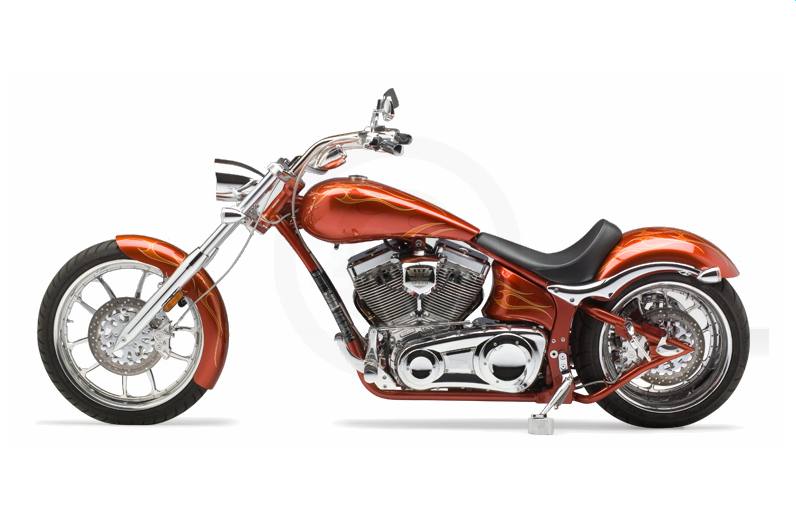

2009 Big Dog Motorcycles Mastiff
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Super Fat 300 Rear Tire
  • Smooth-Riding Hidden Shocks
  • 117 c.i. Engine / 6-Speed BDM Balance Drive
  • Curved Dual Down Tubes
  • 42-Degree Total Rake
  • 6" Backbone Stretch
  • 2" OS Fork Length
  • 4" Ground Clearance
  • 103" Total Length (over 8½ ft.)
Specifications
  • Factory Warranty: 2 Years
  • Dry Weight - Front: 281 lbs (127 kg)
  • Dry Weight - Rear: 427 lbs (194 kg)
  • Dry Weight - Total: 708 lbs (321 kg)
  • GVWR: 1130 lbs (512 kg)
  • GAWR - Front: 390 lbs (177 kg)
  • GAWR - Rear: 740 lbs (336 kg)
  • Fuel - Total: 4.6 gal (17.4 L)
  • Fuel - Main: 3.9 gal (14.7 L)
  • Fuel - Reserve: 0.7 gal (2.7 L)
  • Oil Capacity: 2.875 - 3 qts (2.7 - 2.8 L)
  • Frame Rake: 39 degrees
  • Tree Rake: 3 degrees
  • Trail: 4.81" (122.2 mm)
  • Front Suspension: 41 mm Telescopic
  • Fork Length: +2.0" (50.8 mm)
  • Seat Height: 24.25" (616 mm)
  • Ground Clearance: 4.0" (101.6 mm)
  • Wheel Base: 77.5" (1968 mm)
  • Total Length: 103" (2616 mm)
  • Front Brake: 4-Piston Diff Bore
  • Rear Brake: 4-Piston
  • Front Tire: MH120/70-21 62H
  • Rear Tire: 300/35-R18 87V
  • Front Tire Pressure: 40 psi (275.8 kPa)
  • Rear Tire Pressure: 42 psi (289.5 kPa)
  • Front Wheel: 21" x 3.50" (533.4 mm x 88.9 mm)
  • Rear Wheel: 18" x 10.50" (457.2 mm x 266.7 mm)
  • Engine: OHV 45 degree V-Twin
  • Displacement: 117 c.i. (1917 cc)
  • Bore x Stroke: 4.125" x 4.375" (104.8 mm x 111.1 mm)
  • Compression Ratio: 9.6:1
  • Fuel System: Carbureted
  • Transmission: 6-Speed
  • Primary Drive: Comp/Balance Drive
  • Final Drive: 1.125" (28.6 mm) Belt
  • Ignition: Electronic Single Fire
  • Charging Output: 35 Amp
  • Battery: 310 CCA/Sealed AGM

Specifications

Engine
Engine Type OHV 45 degree V-Twin
Displacement 117 cu. in. (1917 cc)
Bore and Stroke 4.125" x 4.375" (104.8 mm x 111.1 mm)
Compression Ratio 9.6:1
Fuel System Carbureted
Ignition Electronic Single Fire
Chassis
Front Suspension 41 mm Telescopic
Front Brakes 4-Piston Diff Bore
Front Tire MH120/70-21 62H
Rear Brakes 4-Piston
Rear Tire 300/35-R18 87V
Dimensions
Dry Weight 708 lbs. (321 kg)
Fuel Capacity 4.6 gal (17.4 l)
Wheelbase 77.5 in. (1968 mm)
Seat Height 24.25 in. (616 mm)
Trail 4.81 in. (122.2 mm)
Rake Frame Rake: 39 deg.; Tree Rake: 3 deg.
Transmission
Transmission 6-Speed
Final Drive 1.125 in. (28.6 mm) Belt
General
Warranty 2 Years

Compare Models

 Print








Year 2009
Manufacturer Big Dog
Model Mastiff
Style Cruiser
MSRP* $27,900.00
Chassis
Front Suspension 41 mm Telescopic
Front Brakes 4-Piston Diff Bore
Front Tire MH120/70-21 62H
Rear Suspension
Rear Brakes 4-Piston
Rear Tire 300/35-R18 87V
Dimensions
Dry Weight 708 lbs. (321 kg)
Fuel Capacity 4.6 gal (17.4 l)
Wheelbase 77.5 in. (1968 mm)
MPG
Seat Height 24.25 in. (616 mm)
Trail 4.81 in. (122.2 mm)
Rake Frame Rake: 39 deg.; Tree Rake: 3 deg.
Engine
Engine Type OHV 45 degree V-Twin
Displacement 117 cu. in. (1917 cc)
Bore and Stroke 4.125" x 4.375" (104.8 mm x 111.1 mm)
Cooling
Compression Ratio 9.6:1
Fuel System Carbureted
Ignition Electronic Single Fire
General
Speedometer
Tachometer
Odometer
Colors
Warranty 2 Years
Transmission
Transmission 6-Speed
Final Drive 1.125 in. (28.6 mm) Belt
