New Motorcycles » Big Dog » Pitbull
Model Quick Search

$26,900.00

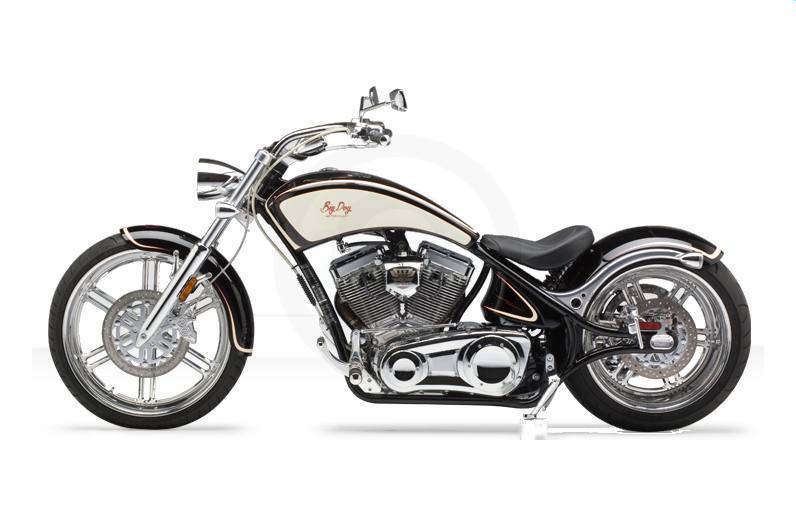

2009 Big Dog Motorcycles Pitbull
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Rigid Frame with Spring-Seat Comfort
  • Distinctive Tall Wheels (20" Rear x 23" Front)
  • 117 c.i. Engine / 6-Speed BDM Balance Drive
  • Distinct 4.6 Gallon Tank
  • Fat 280 Rear Tire
  • 33-Degree Total Rake
  • 1" OS DT; 6" OS BB
  • 102" Total Length
  • 4.75" Ground Clearance
Specifications
  • Factory Warranty: 2 Years
  • Dry Weight - Front: 295 lbs (134 kg)
  • Dry Weight - Rear: 396 lbs (179 kg)
  • Dry Weight - Total: 691 lbs (313 kg)
  • GVWR: 1085 lbs (492 kg)
  • GAWR - Front: 360 lbs (163 kg)
  • GAWR - Rear: 725 lbs (328 kg)
  • Fuel - Total: 4.7 gal (17.8 L)
  • Fuel - Main: 3.9 gal (14.7 L)
  • Fuel - Reserve: 0.8 gal (3.02 L)
  • Oil Capacity: 3.75 qts (3.5 L)
  • Frame Rake: 33 degrees
  • Tree Rake: 0 degrees
  • Trail: 5.59" (142 mm)
  • Front Suspension: 41 mm Telescopic
  • Fork Length: -1.0" (-25.4 mm)
  • Seat Height: 25.5" (647.7 mm) Spring Seat
  • Ground Clearance: 4.75" (120 mm)
  • Wheel Base: 73" (1857 mm)
  • Total Length: 101.8" (2586 mm)
  • Front Brake: 4-Piston Diff Bore
  • Rear Brake: 4-Piston
  • Front Tire: 130/60-R23 65V
  • Rear Tire: 280/40-R20 89V
  • Front Tire Pressure: 40 psi (275.8 kPa)
  • Rear Tire Pressure: 42 psi (289.5 kPa)
  • Front Wheel: 23" x 3.75" (584.2 mm x 95.25 mm)
  • Rear Wheel: 20" x 10.50" (508.0 mm x 266.7 mm)
  • Engine: OHV 45 degree V-Twin
  • Displacement: 117 c.i. (1917 cc)
  • Bore x Stroke: 4.125" x 4.375" (104.8 mm x 111.1 mm)
  • Compression Ratio: 9.6:1
  • Fuel System: Carbureted
  • Transmission: 6-Speed
  • Primary Drive: Comp/Balance Drive
  • Final Drive: 1.125" (28.6 mm) Belt
  • Ignition: Electronic Single Fire
  • Charging Output: 35 Amp
  • Battery: 310 CCA/Sealed AGM

Specifications

Engine
Engine Type OHV 45 degree V-Twin
Displacement 117 cu. in. (1917 cc)
Bore and Stroke 4.125" x 4.375" (104.8 mm x 111.1 mm)
Compression Ratio 9.6:1
Fuel System Carbureted
Ignition Electronic Single Fire
Chassis
Front Suspension 41 mm Telescopic
Front Brakes 4-Piston Diff Bore
Front Tire 130/60-R23 65V
Rear Brakes 4-Piston
Rear Tire Rear Tire: 280/40-R20 89V; Rear Wheel: 20" x 10.50" (508.0 mm x 266.7 mm)
Dimensions
Dry Weight 691 lbss (313 kg)
Fuel Capacity 4.7 gal (17.8 l)
Wheelbase 73 in. (1857 mm)
Seat Height 25.5 in. (647.7 mm) Spring Seat
Trail 5.59" (142 mm)
Rake Frame Rake: 33 deg.; Tree Rake: 0 deg.
Transmission
Transmission 6-Speed
Final Drive 1.125 in. (28.6 mm) Belt
General
Warranty 2 Years

Compare Models

 Print








Year 2009
Manufacturer Big Dog
Model Pitbull
Style Cruiser
MSRP* $26,900.00
Chassis
Front Suspension 41 mm Telescopic
Front Brakes 4-Piston Diff Bore
Front Tire 130/60-R23 65V
Rear Suspension
Rear Brakes 4-Piston
Rear Tire Rear Tire: 280/40-R20 89V; Rear Wheel: 20" x 10.50" (508.0 mm x 266.7 mm)
Dimensions
Dry Weight 691 lbss (313 kg)
Fuel Capacity 4.7 gal (17.8 l)
Wheelbase 73 in. (1857 mm)
MPG
Seat Height 25.5 in. (647.7 mm) Spring Seat
Trail 5.59" (142 mm)
Rake Frame Rake: 33 deg.; Tree Rake: 0 deg.
Engine
Engine Type OHV 45 degree V-Twin
Displacement 117 cu. in. (1917 cc)
Bore and Stroke 4.125" x 4.375" (104.8 mm x 111.1 mm)
Cooling
Compression Ratio 9.6:1
Fuel System Carbureted
Ignition Electronic Single Fire
General
Speedometer
Tachometer
Odometer
Colors
Warranty 2 Years
Transmission
Transmission 6-Speed
Final Drive 1.125 in. (28.6 mm) Belt
